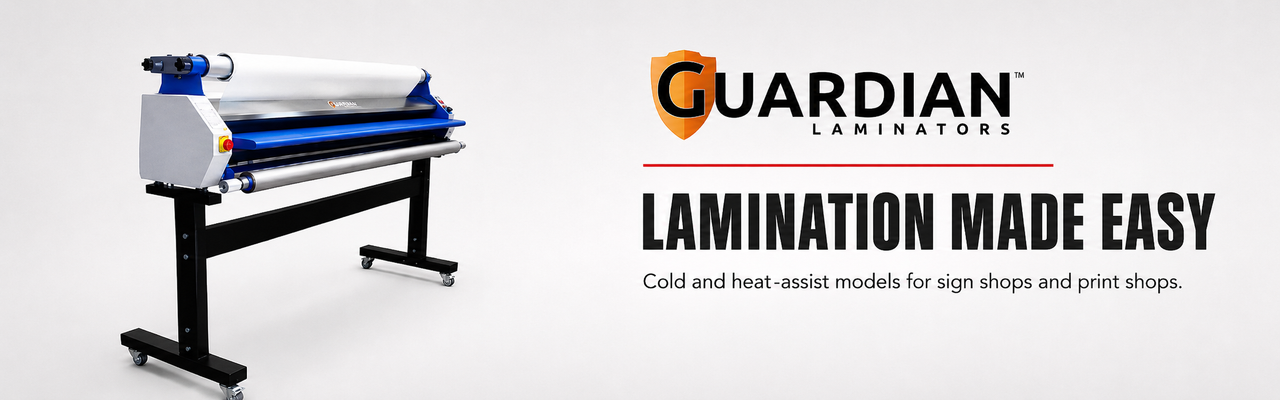

Guardian Laminators

Guardian Wide & Large Format Laminators By Supply55

Guardian Laminators™ are an affordable, easy to use solution for all of your large and wide format finishing, laminating and mounting needs. The Guardian system’s intuitive design makes for quick and easy use, maintenance, and cleaning… saving you time on production. Solid, all steel construction provides high quality performance and ensures Guardian Laminators are built to last.


  • All steel component construction
  • Forward/reverse functionality
  • Upper and lower idler bars
  • Variable speed (up to 23 ft/min)
  • 65’” Laminating width
  • Lower mandrel with double ended tension brake
  • Adjustable pressure settings
  • Easy loading drop-in supply shafts
  • Removable feed table
  • Crowned high-quality silicone rollers
  • One (1) year parts warranty
  • Optional take-up system
  • Optional media mandrel kit
Emergency Stops
Safety switches are featured in both front and rear positions for easy access.
Safety Plate
Guards the rollers and ensures media goes in, but fingers stay out.
Magic Bar System
Upper and lower idler bars provide accurate positioning for a smooth, clean finish.
Lower Mandrel
Equipped with a standard lower mandrel and an optional media mandrel kit.
Variable Speed
The control panel allows for variable speeds up to 23 ft/min, forward and reverse.

Please feel free to call us at 734-668-0755 or email us at for additional information on Guardian Laminators or if you’re interested in becoming
an authorized dealer.

Lamination Speed Variable, up to 23 ft/min (7m/min)
Laminate Width 64.96 in (1650 mm)
Maximum Media Thickness 0.57 in (14.48 mm)
Power - Cold 120 V / 60Hz, 0.5A, 25 Watts
Power - Heat Assist 120 V / 60Hz, 9A, 1300 Watts
Heat Assist Temperature Range 104˚-122˚F (40˚-50˚C )
Feed Tray Height 36 in (916 mm)
Assembled Dimensions 65" - 73.2 x 22.4 x 51.18 in
(1860 x 570 x 1300 mm)
Shipping Dimensions 65" - 78 x 23.2 x 26 in
(2981 x 590 x 660 mm)
Shipping Weight 65" - 400 lbs
Part Number Description MSRP
55-LM1650CL01 Guardian Cold 65" $5,295.00
55-LM1650HA01 Guardian Heat Assist 65" $5,995.00
55-LM1650MK01 Media Mandrel Kit 65" $275.00
55-LM1650DC01 Dust Cover 65" $125.00
