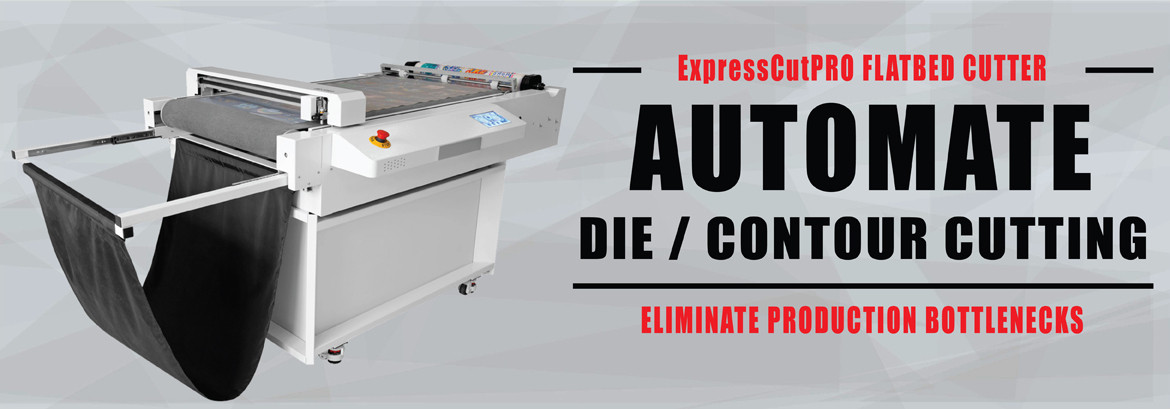

ExpressCutPRO Flatbed DTF Cutter by Saga

ExpressCutPRO Flatbed Cutter for DTF (Direct to Film), Labels and More

ExpressCutPRO is a digital flatbed conveyor cutter engineered to reduce labor, increases profits, and improve efficiency by automatically cutting fully printed rolls of DTF (direct to film) transfers, sublimation transfers, pressure sensitive vinyl, reflective vinyl, window film, sandblast masking, HTV (heat transfer vinyl), PET (polyester film), gasket material, vinyl decals, paint protection film, stencil making, pattern making, and other films. ExpressCutPRO features an integrated conveyor belt allowing the device to automatically feed printed or unprinted material from a roll for processing into precisely cut DTF transfers, decals, prints and more.

ExpressCutPRO is an Open Architecture device compatible with all DTF, ink jet and toner printers. Don't get trapped by Closed Architecture systems designed to lock the user into a specific workflow or system architecture.

FEATURES

  • All steel component construction
  • 7" Touch screen for easy operation and control
  • CCD (charge-coupled device) digital camera support for crop mark and QR code detection
  • CCD support for black marks on standard media and white marks for transparent media
  • Support for QR codes to identify cut jobs
  • Support for crop marks, roll or sheet cutting
  • Support for a variety of roll cutting formats
  • Connectivity via USB, WiFi and Ethernet
  • Hot folder support for automatically loading cut data after QR code scanning
  • Material auto-feed via conveyor system for roll formats
  • Powered by Servo Motors in the "X" and "Y" directions
  • Open Architecture compatible with all DTF, ink jet and toner printers
  • Supports Advanced PerfCut (APC) allowing the user to process a combination of knockout and perfcuts in the same cut sequence

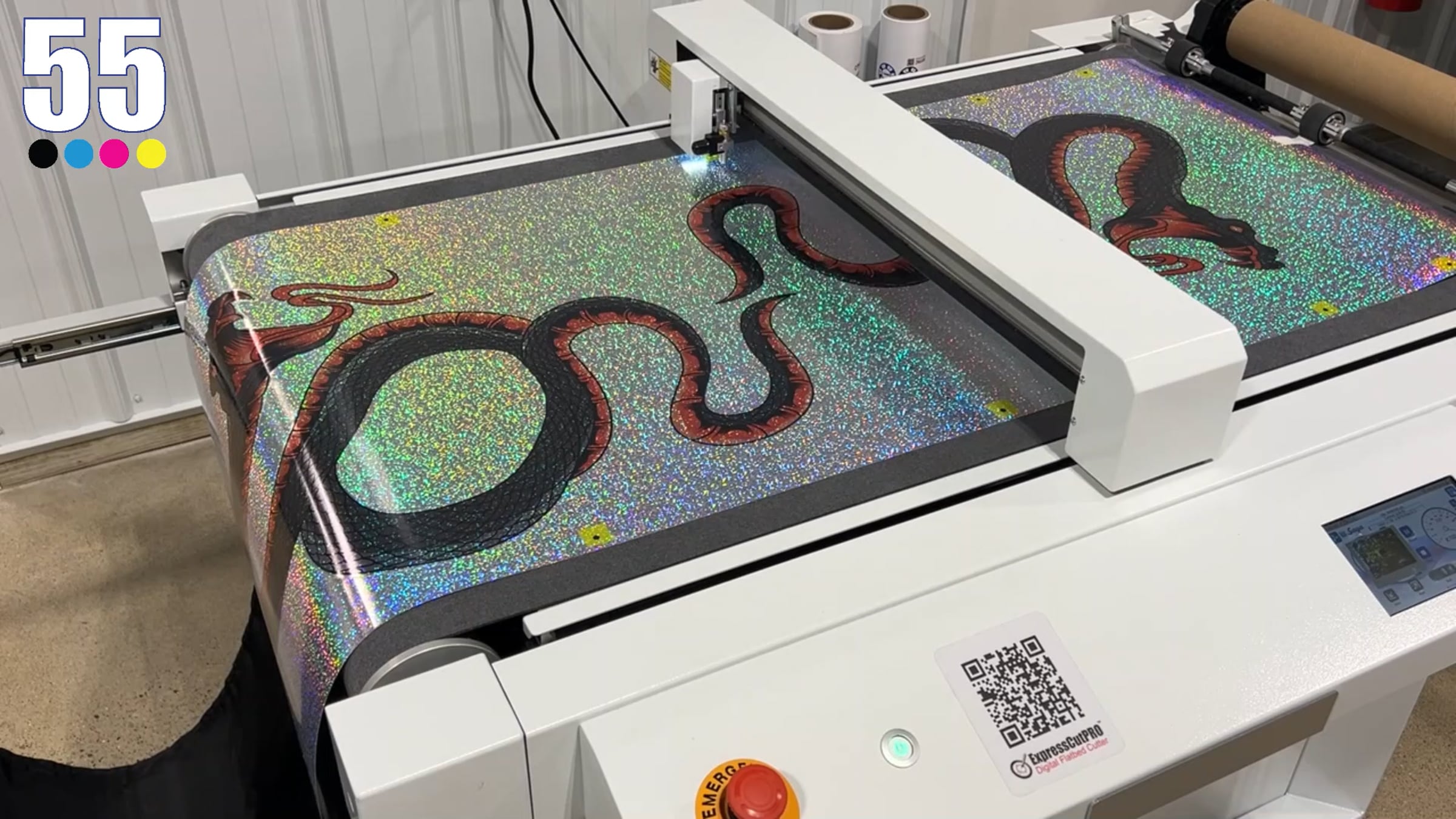

  • Supports an unlimited cut length with auto advance of the conveyor belt to facilite long file cutting
  • Adobe Illustrator Plug-in for Windows Included
  • CadLINK Digital Factory / Driver Available for Download
  • SAI Driver in development

Please feel free to call us at 734-668-0755 or email us at sales@supply55.com for additional information on ExpressCutPRO Digital Cutting System. If you are interested in becoming a dealer or OEM for ExpressCutPRO, please call Supply55 at 734-668-0755.

Take control of your workflow today with ExpressCutPRO from Supply55 and Saga CNC.

Seamless Workflow Integration

An exceptional cutter requires outstanding workflow integration, and ExpressCutPRO has just that. The cutter conveniently connects to WiFI, Ethernet, USB cable, or USB stick so it can be operated anywhere.

High Performance Camera

Equipped with a high-quality CCD camera designed to read the most demanding registration marks and QR codes including reflective films, holographic films, DTF film, UV DTF film and clear films. The camera reads the registration marks quickly and automatically loads the corresponding cuttng profile

Quality Meets Efficiency

The ExpressCutPRO can process a 24" x 34.5" area in only 30-60 seconds.

Plug-N-Play

Integrating ExpressCutPRO into your existing printing workflow is simple. ExpressCutPRO offers support from multiple RIP platforms and an easy-to-use touchscreen panel for quick straightforward setup of cut jobs.

Specifications
Cutting control system High-power brushless servo motors
Positioning sensor type CCD (charge-coupled device) digital camera
Open Architecture Compatible with all DTF, ink jet and toner printers, don't get trapped by closed architecture systems
Control panel 7" capacitive touch screen
Tool holder quantity One (1) tool holder
Tool models Blade, plotter pen
Media hold method Vacuum suction
Scanning code type Registration Mark or QR code
Maximum cutting size 25 inches wide x Unlimited Cutting Length / 640mm x Unlimited
Scanning speed +/- 5 seconds
Cutting speed 10-700 mm/s
Cutting Force 0-750g
Advanced PerfCut (APC) Supports Advanced PerfCut (ACP) allowing the user to process a combination of knockout and perfcuts in the same cut sequence
Maximum media weight 250g (varies by type of material)
Media feeding method Auto feeding system via conveyor belt
Maximum diameter of roll 7.87" / 200mm
Sheet feeding speed 100-600 mm/s
Minimum character cutting size .0155" / 10mm2 (varies by media type)
Mechanical resolution 0.02mm
Programmable Resolution HPGL 0.025mm
Repeat precision ≤0.05mm
Connectivity WiFi / Ethernet / USB
Software compatibility Adobe Illustrator Plug-in for Windows, CadLlNK Digital Factory, SAI*
Power requirements table / vacuum pump 110v 50/60Hz, 6.8a / llOv 50Hz,13a
Working environment Temperature:41°F-95°F / Humidity 30%-75% RH
Machine dimensions 65" x 44.5" x 40.2
Shipping dimensions 70" x 57" x 26.5"
Internal memory for cutting files 128M
Shipping weight w/Crate 625 Lbs./ 283kg

Machine weight w-stand
Vacuum pump weight

353 Lbs. / 160kg
55 Lbs. / 25kg

Warranty One (1) year parts warranty
Manufacturer Saga CNC
Part number 55-SG2534-ECP
* SAI Driver in engineering que at software developer
