Continuous Roll-to-Roll Heat Transfer Production from InnoPrinter and Supply55

The InnoPrinter system pairs a semi-automatic industrial roll-to-roll heat press with a high-speed roll slitter, a combined solution that sets it apart from conventional clamshell, swivel, swing away, pneumatic, single/dual shuttle, or flat heat presses. InnoPrinter is a European manufacturer with over twenty-five (25) years of experience building continuous roll-format industrial heat transfer systems, engineered to eliminate the most labor-intensive stages of transfer production by removing manual cutting and sorting from the heat application process.

InnoPrinter systems are fully compatible with direct-to-film (DTF), sublimation, heat transfer vinyl (HTV), screen printed transfers, and HP Indigo transfers, making InnoPrinter a versatile solution for a wide range of production environments. By keeping transfers in a continuous roll format from slitting through pressing, InnoPrinter reduces manual handling and increases production efficiency, enabling manufacturers and decorators to raise throughput, improve consistency, and lower operating costs. Whether producing promotional products, labels, or specialty goods, InnoPrinter delivers faster and more profitable workflows.

Accelerate your production with an MK range semi-automatic industrial roll-to-roll heat press and an InnoPrinter high-speed roll slitter, resulting in faster press times and accurate pressure and placement on every cycle, from the first garment to the last.

Call us at 734-668-0755 or email sales@supply55.com to schedule a live in-person demonstration at Supply55 or a virtual demonstration of the InnoPrinter MK3 roll-to-roll industrial heat press and the RC90 high-speed roll slitter.

Accelerate Transfer Production

InnoPrinter Continuous Roll-to-Roll Workflow

Direct-to-film production is only as fast as its slowest stage, and printing is rarely the bottleneck. The time is lost afterward, when transfers are cut by hand, separated, sorted by job, positioned one at a time, and pressed on a conventional flat press. InnoPrinter rebuilds that back half of the workflow as a continuous roll process: printed DTF roll, high-speed slitting, organized transfer rolls or strips, fast MK continuous roll heat press application, finished product. The result is less manual handling, fewer positioning errors, and a production line that scales with your volume instead of your labor.

Consistent Heat, Pressure, and Positioning at Roll-to-Roll Speed

Every press holds the same heat, pressure, and dwell time, cycle after cycle. The transfer media stays loaded and positioned inside the machine. The operator places the garment on the worktable and taps the foot pedal, and the semi-automatic cycle does the rest. Placement does not drift from the first garment to the last, so a faster line never costs you consistency.

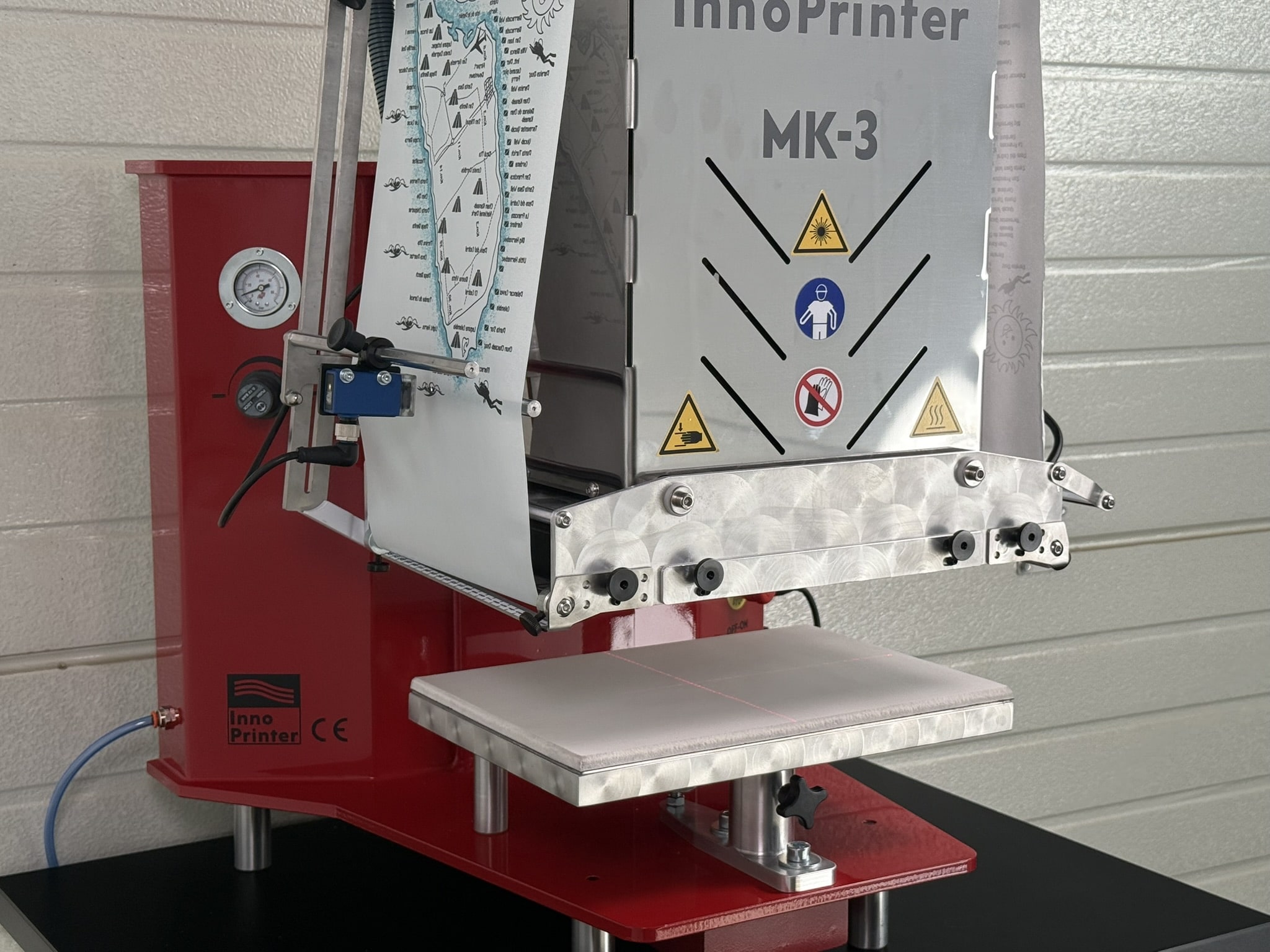

InnoPrinter MK3 semi-automatic foot-pedal heat press cycle with garment on worktable

Built-In Laser Alignment

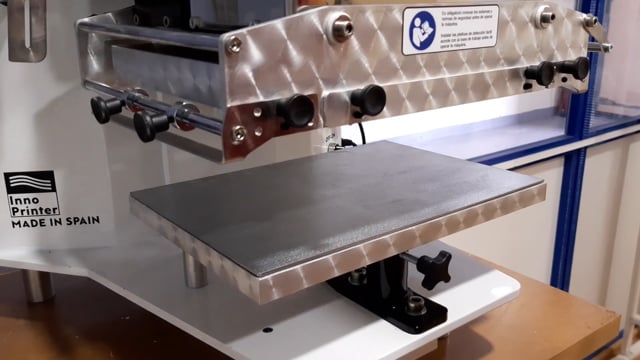

A built-in laser alignment system and pneumatic media clamp let operators hit repeatable placement fast, even on small or detailed transfers like neck labels and care labels. The larger MK3 and MK4 are not limited to full-garment graphics. For small placements such as left chest, sleeve, or labels, a reduced-size base plate or magnetic silicone pads raise the garment to the correct height, so a single MK3 or MK4 handles both oversized prints and small detailed work.

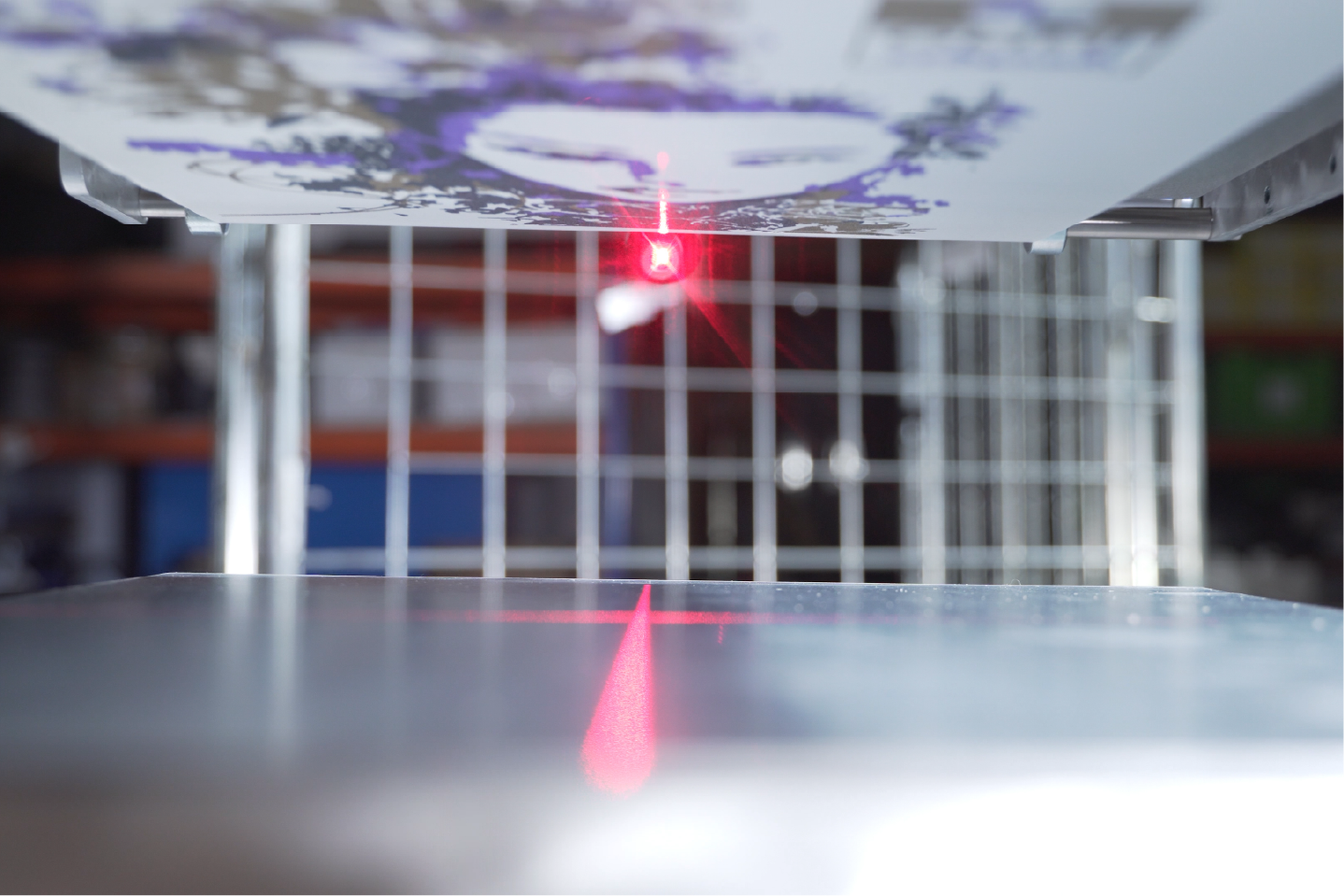

InnoPrinter laser alignment system positioning a detailed transfer

High-Speed Roll-to-Roll Transfer Slitting

The InnoPrinter roll slitter is the front half of the continuous roll workflow. It converts wide printed transfer rolls into narrow, production-ready rolls sized to your garments and layouts, processing printed film at up to 40 feet per minute, far faster than cutting transfers by hand, and feeds directly into MK press application for continuous roll-to-roll output. Tool-free width adjustment speeds job changes. The slitter is available in 24" (60cm) and 36" (90cm) models, both equipped with pneumatic cutting blades that retract automatically when stopped for operator safety. Standard (non-pneumatic) blades are available as a downgrade option on either model if preferred.

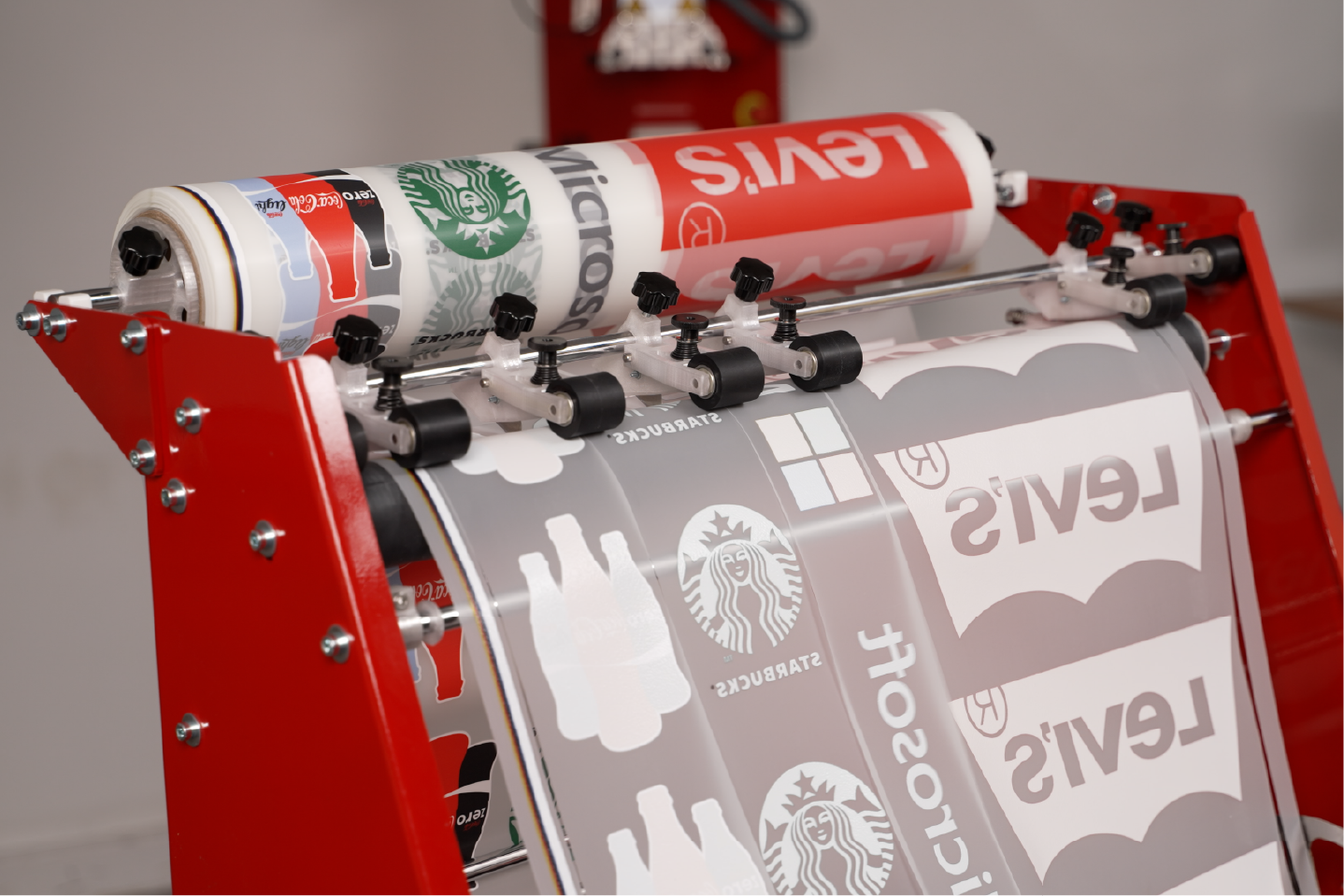

InnoPrinter DTF roll slitter converting wide printed film into narrow production-ready rolls

Custom Configurations & Bespoke Solutions

The MK range is the starting point, not the limit. When your production has a requirement the standard machines don't cover, InnoPrinter and Supply55 engineer the configuration around it: automated conveyor feeding, custom platen sizes and shapes, inline slitting, multi-station layouts, and integration with your existing finishing line. The automated conveyor shoe insole printer shown here is one example, a purpose-built system that presses insoles continuously roll-to-roll without an operator loading each piece by hand.

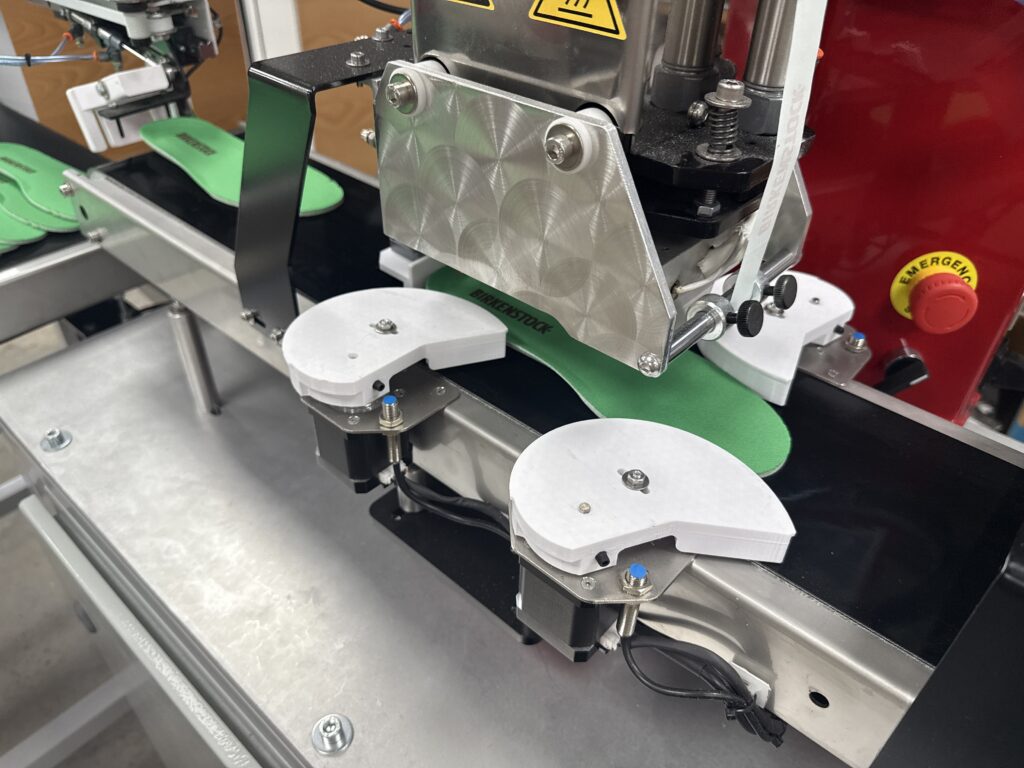

InnoPrinter automated conveyor shoe insole printer, a custom bespoke heat transfer configuration built by Supply55

Fast and Consistent Roll-to-Roll Production Across Every Application

From neck labels to back prints, the InnoPrinter system presses faster without giving up the pressure or placement accuracy your work depends on, all from the same continuous roll-to-roll workflow.

Apparel & Soft Goods

  • T-shirts and garments
  • Sportswear and activewear
  • Workwear and hi-visibility
  • Bags and accessories
  • Towelling and non-wovens

Labels & Compliance

  • Neck labels and care labels
  • Country-of-origin labels
  • Compliance and size labels
  • Promotional products
  • Heat-applied branding

Caps & Specialty

  • Baseball caps and curved products
  • Footwear components
  • Shoe insoles
  • Leather and neoprene goods
  • Softshell and denim

Works with the transfers you already run

Engineered and made in Spain

DTF – press in 2.5s RapidInk roll – 1.2s Cut vinyl 3D silicone EcoResist Hybrid satin patches EN-certified reflective SubliBlock anti-dye-migration

Proven across cotton, polyester, recycled polyester (rPET), poly-cotton, denim, leather, neoprene, spandex, softshell, towelling, non-wovens, and more.

FEATURES

InnoPrinter MK Heat Press Features

  • Semi-automatic, foot-pedal operation for consistent placement run after run
  • Built-in laser alignment with pneumatic media clamp for fast, repeatable positioning
  • Consistent pressure and placement, even on neck and care labels
  • Low energy consumption heating elements hold stable temperatures
  • Low noise level of 44 dB
  • 220V single-phase power, peak draw 350W to 1.4kW depending on model
  • Skin detection safety controls for improved operator safety

InnoSlitter Features

  • High-speed roll slitting at up to 40 feet per minute
  • Pneumatic blades retract automatically when stopped
  • 24" (60cm) and 36" (90cm) models, pneumatic or standard blades
  • Tool-free width adjustment for fast job changes
  • Runs on standard 110V single-phase power

All InnoPrinter machines include English and Spanish language support and a one (1) year parts warranty. Pre and post sales support and service provided by Supply55, Inc. in North America.

Swipe the table sideways to see all columns →

Model Max Pressing Area Best For Max Throughput Power Draw
MK1 3.9" x 3.9" (100 x 100mm) Neck labels, care labels, sleeve logos, insoles Up to 860 prints/hour* 220V, 350W peak
MK-CAPS 3.9" x 3.1" (100 x 80mm, curved) Baseball caps, curved products, small flats Up to 860 prints/hour* 220V, 350W peak
MK2 10.2" x 6.7" (260 x 170mm) Mid-size logos and prints Up to 720 prints/hour* 220V, 950W peak
MK3 (Most Popular) 13.8" x 9.4" (350 x 240mm) Large garment graphics, plus small transfers with reduced base plate or silicone pads Up to 720 prints/hour* 220V, 950W peak
MK4 15.7" x 11.8" (400 x 300mm) Oversized graphics, back prints, totes, panels, plus small transfers with reduced base plate or silicone pads Up to 720 prints/hour* 220V, 1.4kW peak

*Throughput figures are based on a left chest transfer time study. Actual impressions per hour will vary with transfer size, layout, operator, and full-garment placement.

All MK presses share
Temperature range 77 to 446°F, timer 0.5 to 60 seconds, application pressure 1 to 4 bar, max substrate thickness 0.55", noise level 44 dB.

Power & air
MK presses run on 220V single-phase power (1P + N + Ground); the InnoSlitter runs on 110V. Presses are pneumatic and require shop compressed air (approx. 87 psi, 5/16" push-fit, ~4.2 CFM).

InnoPrinter industrial roll-to-roll heat presses and roll slitters are available exclusively through Supply55, Inc. in North America. Call us today at 734-668-0755 or email sales@supply55.com to learn more about InnoPrinter and how you can accelerate your garment decoration production.

Take control of your transfer production today with InnoPrinter and Supply55, Inc.

See it in action

Machines & Core Systems ▼

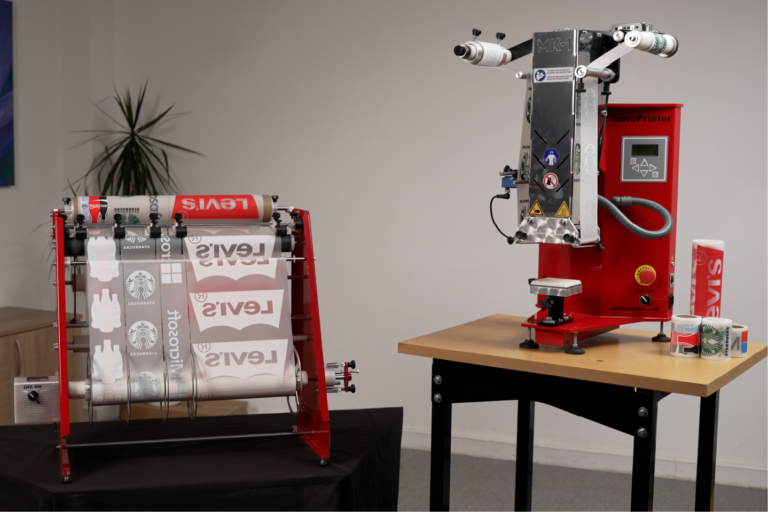

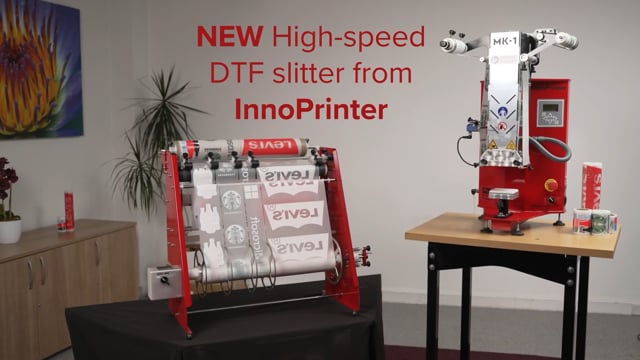

InnoPrinter High-Speed DTF Slitter (24") with MK1 Heat Press
InnoPrinter high-speed DTF slitter 24 inch with MK1 semi-automatic heat press

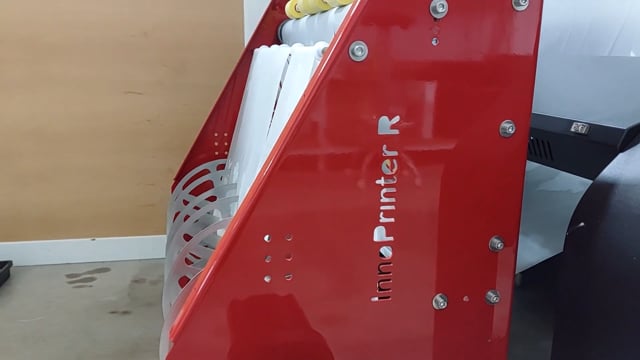

InnoSlitter & InnoPrinter MK3 Press Printing DTF on Makeup Bags
InnoSlitter and InnoPrinter MK3 press printing DTF transfers on makeup bags

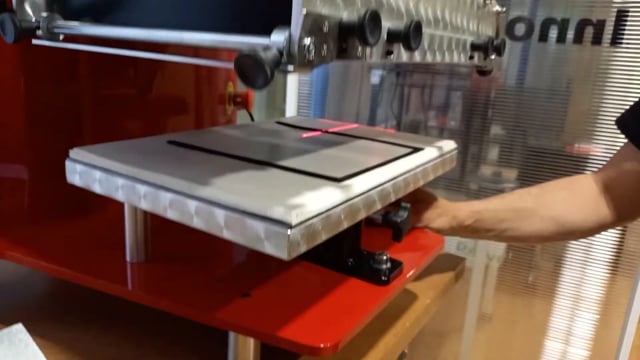

InnoPrinter MK3 Exchanging Working Bases
InnoPrinter MK3 heat press exchanging interchangeable working base plates

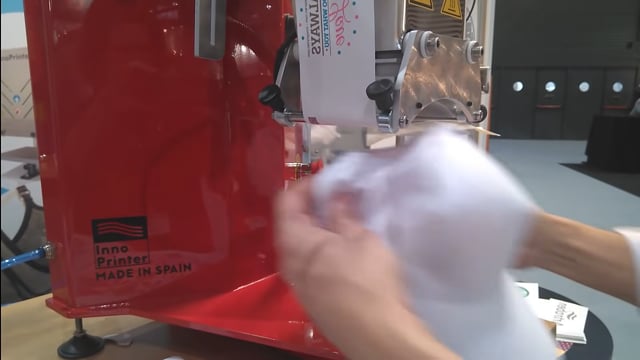

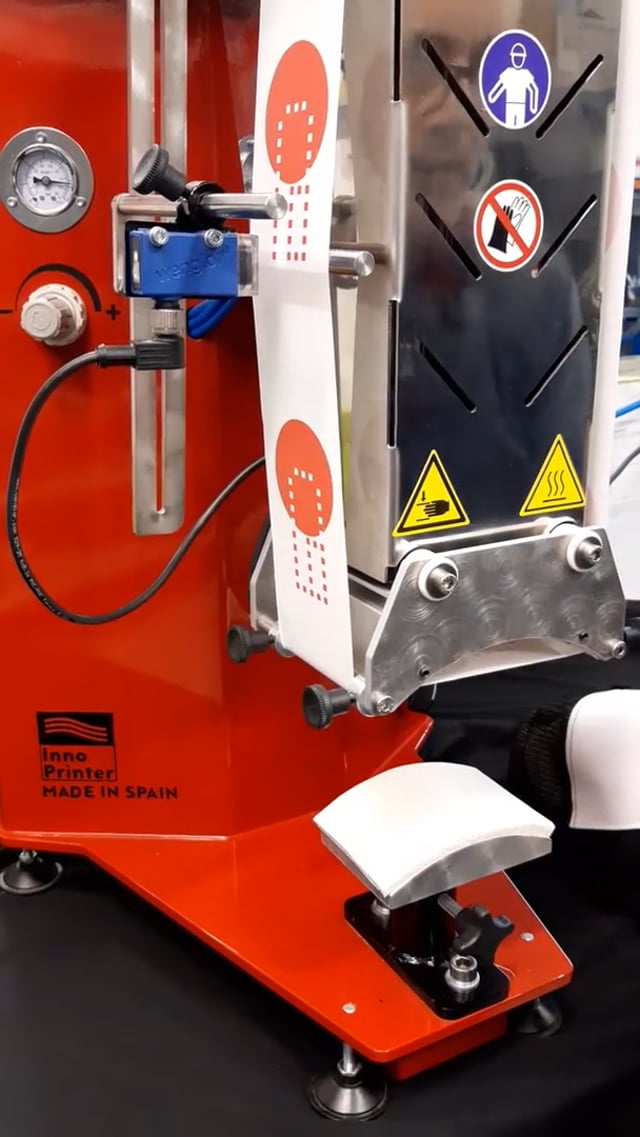

InnoPrinter MK Caps Hat Press in Action
InnoPrinter MK Caps curved hat heat press decorating baseball caps

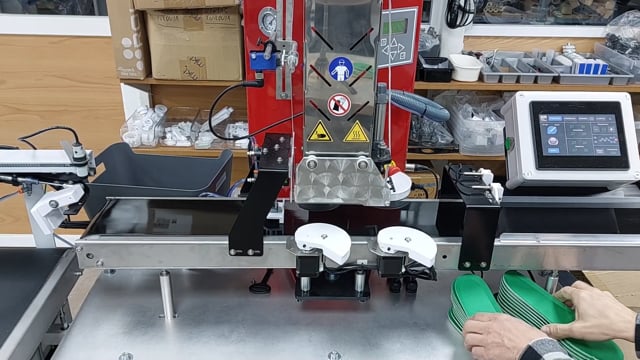

InnoPrinter Next-Gen Automated Insole Printing Machine
InnoPrinter next-generation automated conveyor insole printing machine
Positioning & Accessories ▶
Apparel & Labels ▶
Specialty Applications ▶

store

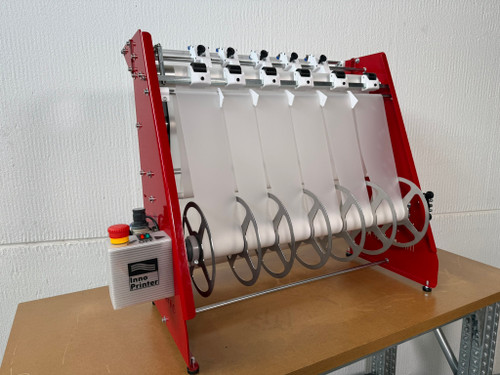

  • InnoPrinter RC60 DTF roll slitter threaded with white film, angled view. Red-framed slitter with six strips of white DTF film fed from the top rail down through the blade assembly and separated onto metal discs along the rewind shaft, with the InnoPrinter control box and emergency stop visible on the left.

    InnoSlitter High-Speed DTF Roll Slitter (RC60 & RC90)

    The InnoPrinter InnoSlitter is a high-speed roll-to-roll transfer slitter that converts wide printed DTF rolls into narrow, production-ready rolls sized to your garments and layouts, far faster than cutting transfers by hand. It is the front half of...

  • Front view of the InnoPrinter MK-CAPS curved cap platen, shaped to match a cap front for even heat and pressure across the curve

    InnoPrinter MK-CAPS Roll-to-Roll Semi-Automatic Hat Heat Press

    The InnoPrinter MK-CAPS Roll-to-Roll Semi-Automatic Curved Heat Press is the cap-specialist model in the InnoPrinter MK range, built for fast, accurate transfer application onto baseball caps and other curved textile products. Its 3.9" x 3.1" (100 x...

  • InnoPrinter MK4 roll-to-roll semi-automatic heat press on a clear pin positioning table with laser alignment for fast repeatable placement

    InnoPrinter MK4 Roll-to-Roll Semi-Automatic Heat Press

    The InnoPrinter MK4 Roll-to-Roll Semi-Automatic Heat Press is the largest model in the InnoPrinter MK range, built for oversized graphics and the biggest jobs a decorator runs. With a 15.7" x 11.8" (400 x 300mm) pressing area, the MK4 presses full back...

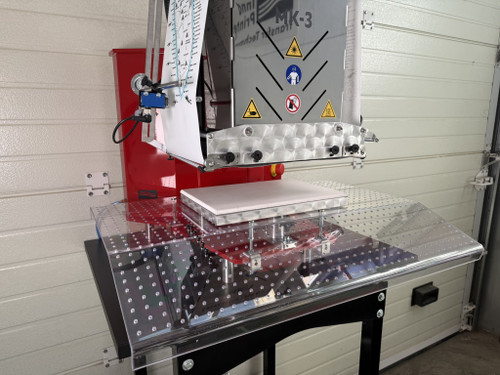

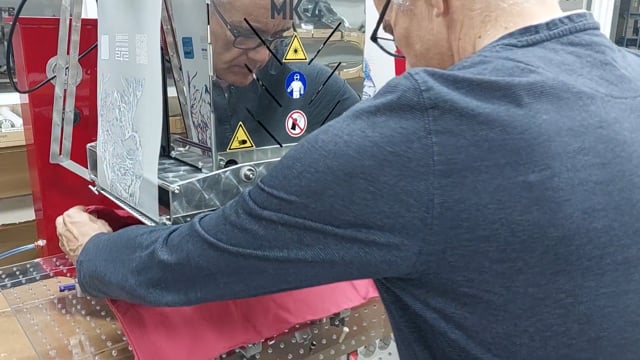

  • InnoPrinter MK3 roll-to-roll semi-automatic heat press mounted on a clear pin positioning table for fast, repeatable garment placement

    InnoPrinter MK3 Roll-to-Roll Semi-Automatic Heat Press

    The InnoPrinter MK3 Roll-to-Roll Semi-Automatic Heat Press is the most popular model in the InnoPrinter MK range, and for good reason: it is the one press that handles both large garment graphics and small detailed work from a single machine. With a 13...

  • InnoPrinter MK2 roll-to-roll semi-automatic heat press with the full-size mid-format platen installed for logo and chest prints

    InnoPrinter MK2 Roll-to-Roll Semi-Automatic Heat Press

    The InnoPrinter MK2 Roll-to-Roll Semi-Automatic Heat Press is the mid-size workhorse of the InnoPrinter MK range, built for the logos and prints that fall between small-format labels and full-garment graphics. With a 10.2" x 6.7" (260 x 170mm) pressing...

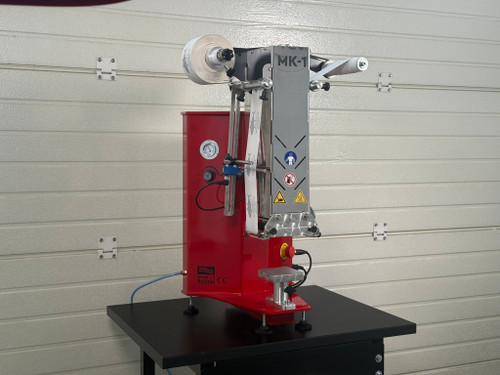

  • InnoPrinter MK1 roll-to-roll semi-automatic heat press in red with loaded transfer roll mounted on a worktable
