Industrial Roll-to-Roll Lamination, Slitting, and Sheeting from ZFP and Supply55
The ZFP 1650 Industrial Wide Format Laminator is a 65" (1650mm) roll-to-roll laminating machine engineered for high-volume converting, trade finishing, and packaging production. Unlike conventional wide format laminators built only to finish printed graphics, the ZFP 1650 is a true industrial web laminator: it unwinds, laminates, slits, sheets, and rewinds paper, cardboard, and film in a single pass, at operating speeds up to 72 feet per minute (22 m/min).
ZFP is a European laminating equipment manufacturer with more than two decades of experience designing and building sheet-fed laminators, roll-to-roll laminating systems, slitter rewinders, and bespoke finishing machinery at its factory in Gdynia, Poland. Every machine is engineered and assembled in-house, from the frame to the electromagnetic web tension control, giving ZFP the ability to configure each laminator around the customer's substrates, roll sizes, and production workflow.
What sets the ZFP 1650 apart is its three-in-one operating design. The same machine runs as a roll-to-roll laminator, a roll-to-sheet laminator with automatic cutting to registration marks or set length, and a sheet-fed laminator with automatic sheet separation. One footprint on your production floor replaces three dedicated machines, and changeover between modes is fast enough to run all three in a single shift.
Call us at 734-668-0755 or email sales@supply55.com to schedule a virtual demonstration of the ZFP 1650 industrial roll-to-roll laminator or to discuss a custom configuration built around your production requirements.
Three Machines in One Footprint
Roll-to-Roll, Roll-to-Sheet, and Sheet-to-Sheet Lamination from a Single Industrial Laminator
Roll-to-Roll Mode: Continuous Web Lamination at 72 Feet per Minute
In roll-to-roll mode, the ZFP 1650 unwinds the master roll, laminates the full 65" web, and rewinds the finished material onto a 3" core, ready for the next stage of your converting line. An electromagnetic brake on the master-roll shaft holds precise, consistent web tension from a full roll down to the core, eliminating the wrinkles, tunneling, and edge lift that plague friction-brake laminators at production speed. Continuous operation at up to 72 ft/min makes the ZFP 1650 a genuine production web laminator, not a graphics finisher pressed into converting duty.
Roll-to-Sheet Mode: Laminate and Cut to Marker or Set Length
Switch to roll-to-sheet mode and the ZFP 1650 laminates the web and cuts it into finished sheets in the same pass, either to printed registration marks or to a programmed set length. Roll-fed input with sheet-fed output means you buy material in economical master rolls and deliver press-ready or ship-ready sheets without a separate sheeter, a second operator, or a second machine footprint. For trade finishers and packaging converters, this mode alone changes the economics of laminated sheet production.
Sheet-to-Sheet Mode: Sheet Lamination with Automatic Separation
In sheet-to-sheet mode, the ZFP 1650 laminates individual sheets and automatically separates them at the exit, the same automatic separation technology ZFP has refined across two decades of sheet-fed laminator production. There is no operator standing at the delivery bursting sheets apart by hand, and no downstream trimming station. Feed printed sheets in, take separated laminated sheets out. For shops running both roll stock and sheet stock, this is the mode that makes the ZFP 1650 the only laminator the floor needs.
Industrial Web Handling Built for Production Uptime
Roll changes are where production laminators win or lose the shift. The ZFP 1650 is equipped with pneumatic expanding shafts for 3" cores and quick-release chucks on every shaft, so a full roll change takes minutes, not a maintenance window. The electromagnetic master-roll brake maintains calibrated tension electronically rather than mechanically, delivering flat, tight, consistent lamination across paper, cardboard, and film substrates from the first foot of the roll to the last.
Custom Configurations and Bespoke Industrial Laminating Machines
The ZFP 1650 itself began as a bespoke build for a specialized post-press requirement, and that is the way ZFP works. When your production calls for a different web width, inline slitting, duplex rewinding, a specific substrate package, or integration with existing converting equipment, ZFP and Supply55 engineer the machine around the requirement. ZFP's custom machine program includes duplex slitter rewinders up to 75" (1900mm), compact roll-to-roll laminators, roll-to-sheet cutters, and adhesive application systems. If the machine you need doesn't exist, ZFP builds it.
One Industrial Laminator Across Every Substrate and Output Format
From master-roll web lamination to finished separated sheets, the ZFP 1650 handles paper, cardboard, and film converting work that conventional wide format laminators were never built for.
Packaging & Converting
- Folding carton and boxboard lamination
- Laminated packaging papers
- Flexible film and foil laminating
- Roll-to-roll web converting
- Slit and rewound finished rolls
Commercial Print & Trade Finishing
- Book covers and dust jackets
- Laminated sheet stock cut to length
- Cut-to-marker printed web sheeting
- Trade lamination services
- Wide sheet formats beyond B1 laminators
Specialty & Industrial
- Laminated tags, tickets, and cards
- Protective film application on web stock
- Specialty paper and board products
- Custom substrate programs
- Bespoke converting applications
Proven across paper, cardboard, boxboard, and film substrates in roll and sheet formats. Engineered and built in Poland by ZFP.
FEATURES
Lamination & Web Handling
- 65" (1650mm) maximum web width
- Operating speed up to 72 ft/min (22 m/min)
- Electromagnetic brake on the master-roll shaft for precise web tension
- Pneumatic expanding shafts for 3" cores
- Quick-release chucks for fast, tool-free roll changes
- Laminates paper, cardboard, and film substrates
Three-Mode Operation
- Roll-to-roll: laminate and rewind onto 3" cores
- Roll-to-sheet: cut to registration markers or programmed set length
- Sheet-to-sheet: laminate sheets with automatic separation
- Fast changeover between all three modes
- One machine footprint replaces three dedicated machines
All ZFP industrial laminators include a one (1) year parts warranty. Pre and post sales support, installation guidance, and service provided by Supply55, Inc. in North America.
ZFP 1650 Industrial Wide Format Laminator Specifications
Swipe the table sideways to see all columns →
| Specification | ZFP 1650 Roll-to-Roll Laminator |
|---|---|
| Maximum Web Width | 65" (1650mm) |
| Operating Speed | Up to 72 ft/min (22 m/min) |
| Operating Modes | Roll-to-roll, roll-to-sheet (cut to marker or set length), sheet-to-sheet with automatic separation |
| Web Tension Control | Electromagnetic brake on master-roll shaft |
| Roll Shafts | Pneumatic expanding shafts for 3" cores, quick-release chucks |
| Substrates | Paper, cardboard, film |
| Maximum Roll Diameter | Contact Supply55 |
| Electrical Requirements | Contact Supply55 |
| Machine Dimensions & Weight | Contact Supply55 |
| Warranty | One (1) year parts warranty; North American support by Supply55, Inc. |
The ZFP 1650 is configured to order. Web width, slitting, rewinding, and sheeting options can be tailored to your production requirements. Contact Supply55 for a configuration consultation and complete specifications for your build.
ZFP industrial wide format laminators and custom converting machines are available exclusively through Supply55, Inc. in North America. Call us today at 734-668-0755 or email sales@supply55.com to discuss the ZFP 1650 roll-to-roll laminator or a bespoke machine engineered around your production.
Take control of your lamination and converting production today with ZFP and Supply55, Inc.

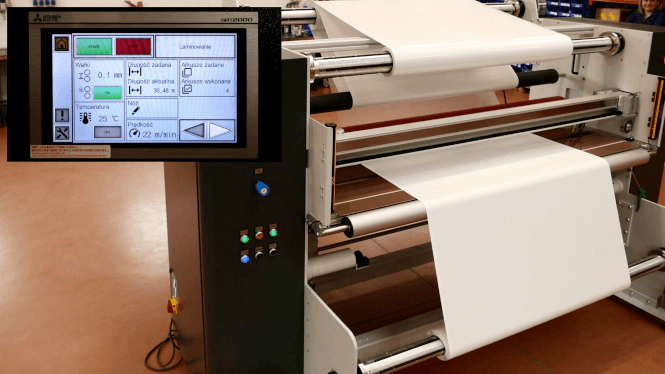

ZFP 1650 Roll-to-Roll Mode

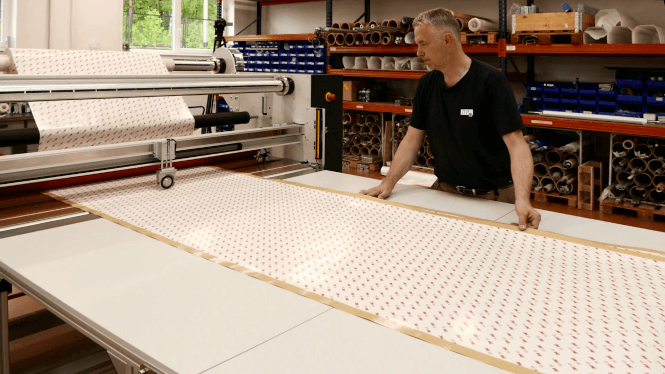

ZFP 1650 Roll-to-Sheet Mode

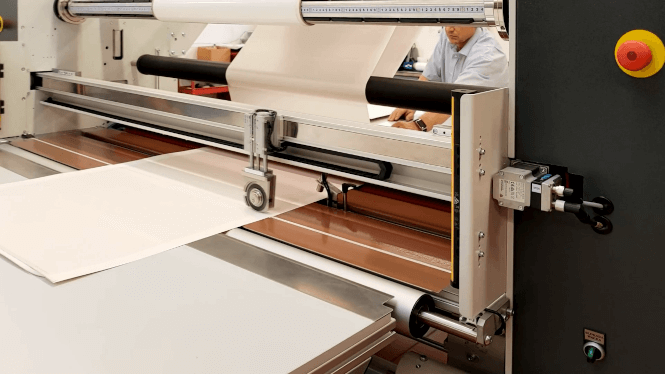

Automatic Sheet Separation

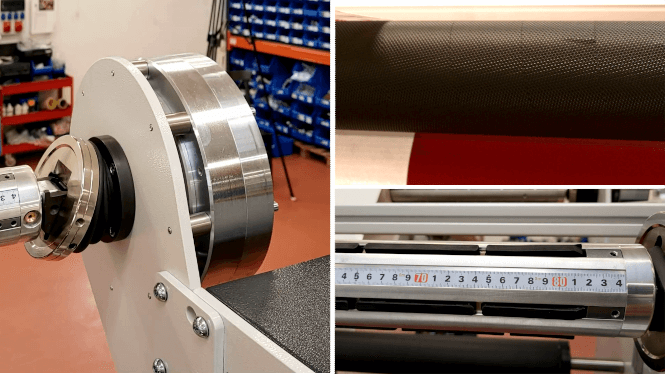

Roll Change & Web Handling
