ZFP roll-to-sheet cutters, duplex slitter rewinder, and hydraulic bookbinding press:
ZFP Sheeters, Slitter Rewinders & Bindery Equipment
AUTOMATIC ROLL-TO-SHEET CUTTERS, 1900 DUPLEX SLITTER REWINDER, AND PH275 HYDRAULIC BOOKBINDING PRESS FOR COMMERCIAL PRINT AND CONVERTING
Supply55, Inc. offers ZFP sheeting, slitting, and bookbinding equipment for commercial print and converting: automatic guillotine cutters that turn roll stock into finished sheets in web widths up to 40", a 75" duplex slitter rewinder for paper, cardboard, and film, and a hydraulic dual-platen bookbinding press. ZFP engineers and builds each machine at its factory in Gdynia, Poland, with 25 years of laminating and finishing equipment experience behind the line, and supplies it in a standard configuration or built to the material, format, and workflow you run.
The CT25 cuts a continuous web to a preset length or to printed marks and separates sheets after double-sided lamination, standalone or inline with your laminator or printer. The mini roll-to-sheet cutter runs the same programs on narrow webs and small formats and holds cutting accuracy to 0.008". The 1900 slits master rolls up to 75" wide onto pneumatic 3" core shafts, and the PH275 presses two jobs at once at a programmed force and time from one operator panel.
Supply55, Inc. handles sales, installation, operator training, wear parts, and service in the United States and Canada, and works directly with the ZFP factory to spec a custom build when a standard machine does not fit your job.
SHEETERS, SLITTER REWINDER & BOOKBINDING PRESS
Inline or offline, standard width or built to yours. The figures below are ZFP's published specifications; anything ZFP does not publish is set when the machine is ordered.
Roll-to-Sheet Cutting / Encapsulated Sheet Separation
CT25 AUTOMATIC GUILLOTINE CUTTER

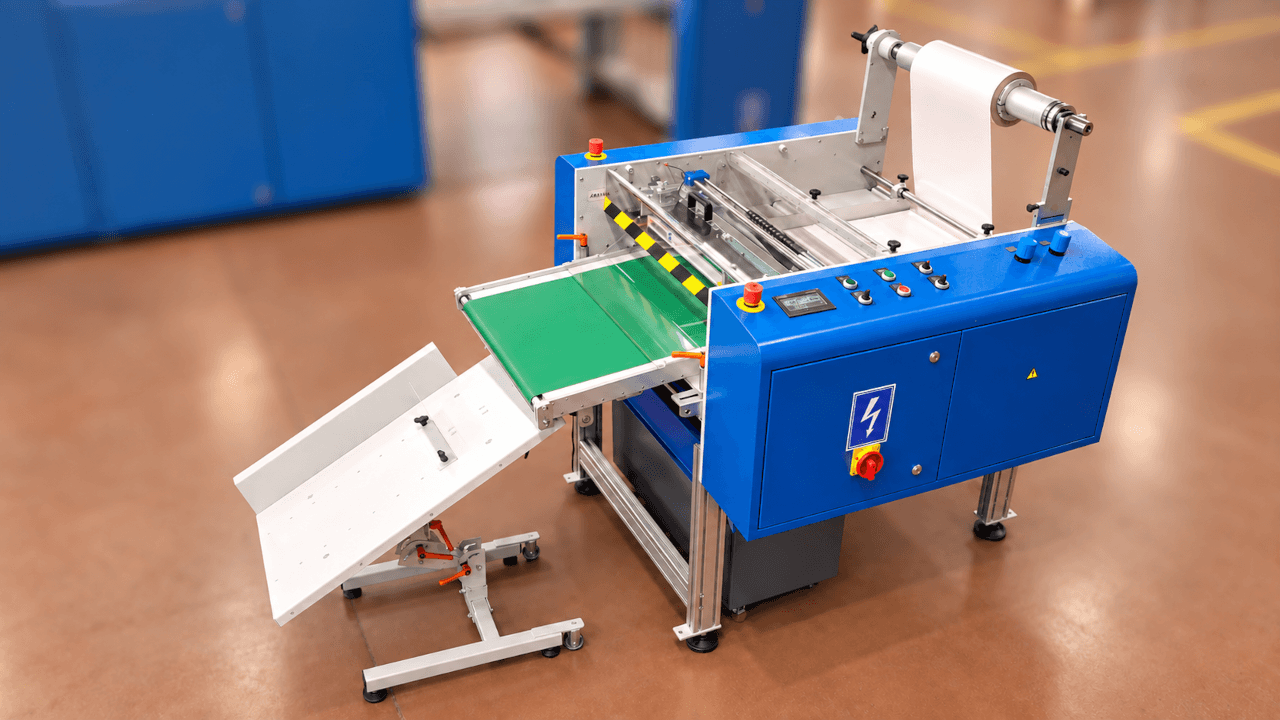

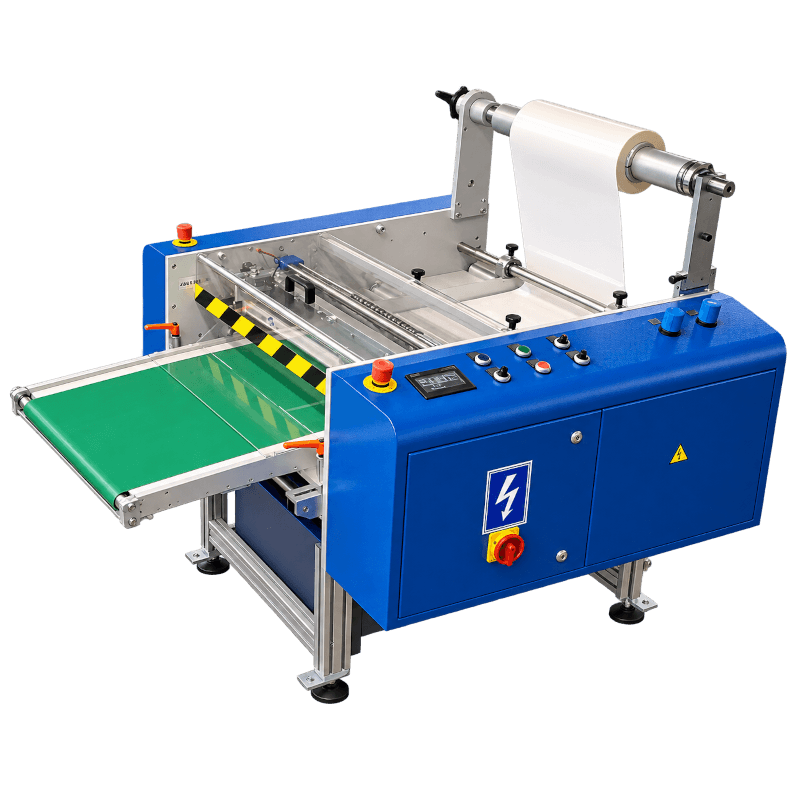

The CT25 is an automatic guillotine cutter that cuts roll-fed material into sheets, to a preset length or to printed marks. It cuts a continuous web into sheets, separates sheets after double-sided lamination, and with the optional web buffer runs inline with a laminator or printer. Built to order in web widths up to 40".

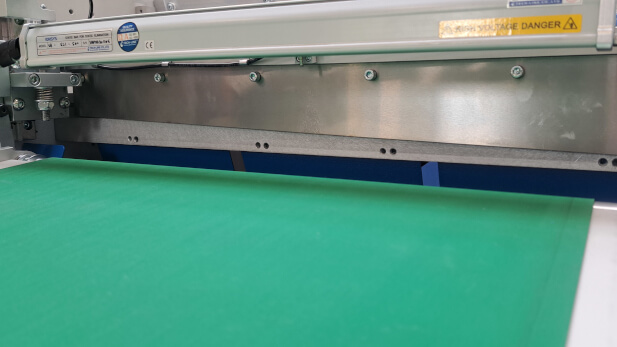

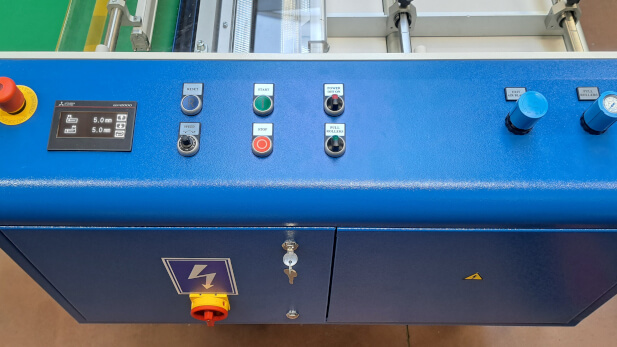

A dancer system stabilizes web tension. The cutting unit is servo-driven and synchronized with material transport. An anti-static bar helps the cut sheets stack smoothly. Mode and parameters are set on a Mitsubishi touch screen.
- Cutting programs: preset length, printed mark, before or after a mark, between double lines, or marked area removed.
- Unwind: fixed shaft with mechanical brake; expanding shaft with electromagnetic brake optional.

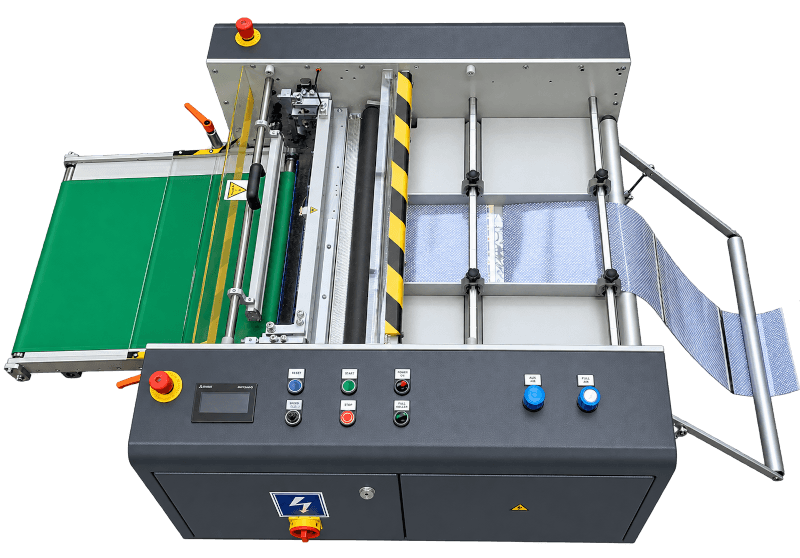

- Inline operation: optional web buffer compensates for speed differences between machines and keeps the web feeding steadily to the cutter.
Compact Roll-to-Sheet Cutting
AUTOMATIC MINI ROLL-TO-SHEET CUTTER

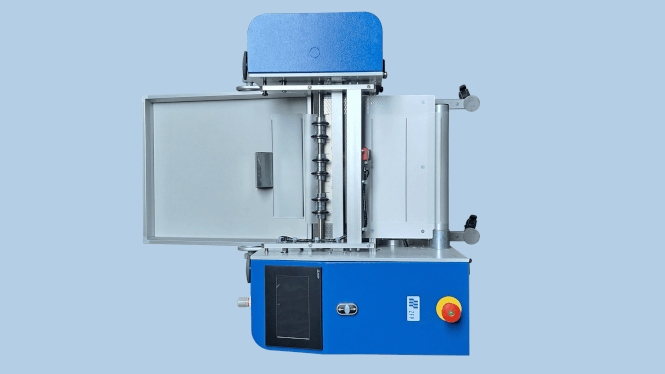

The mini roll-to-sheet cutter is the compact sheeter for narrow webs and small formats: labels, tickets, cards, tags, and short-run roll stock. Each one is built to the customer's specification. Predefined programs cut to a specified length or to printed markers, with settings for cuts before, after, or between double markers, or complete marker removal, and ZFP holds cutting accuracy to 0.008".

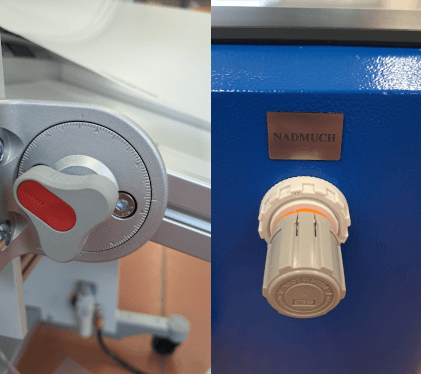

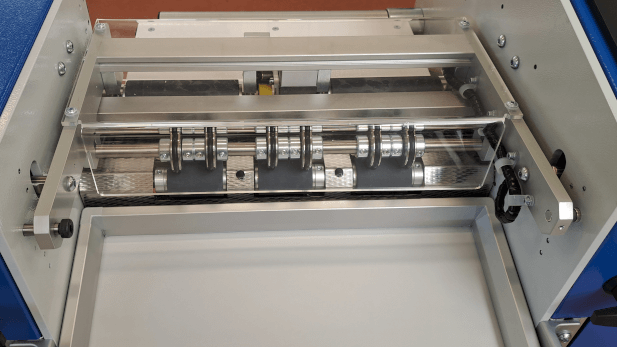

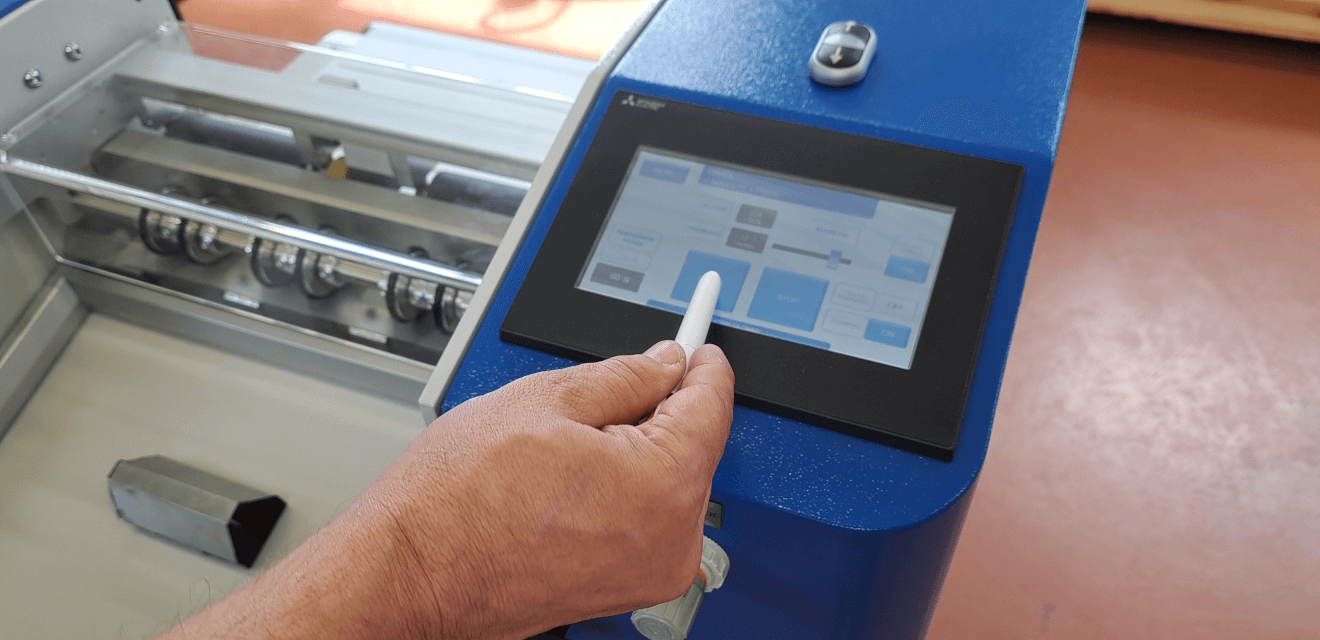

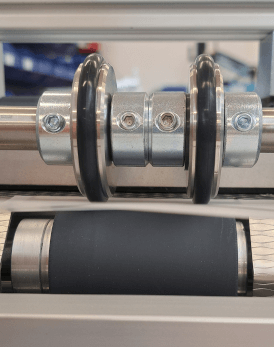

Pull rollers feed the web to the knife, and a delivery table with adjustable air blow settles each sheet as it lands. Speed, web tension, and core settings are set from a large touchscreen.
- Cutting programs: specified length or printed markers, with cuts before, after, or between double markers, or complete marker removal.
- Built to order: web width and sheet format are specified per machine.
75" Master Roll Slitting and Rewinding

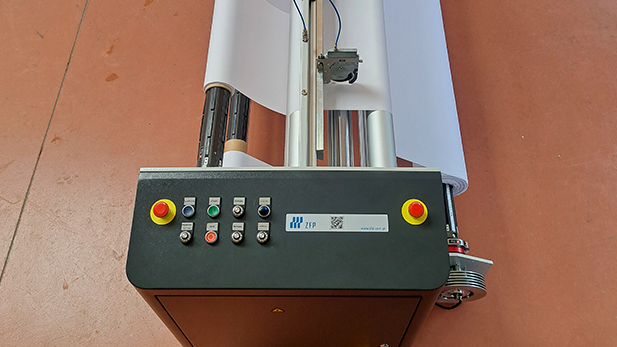

1900 DUPLEX SLITTER REWINDER

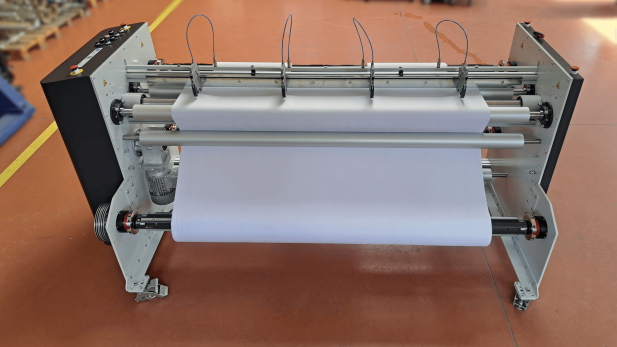

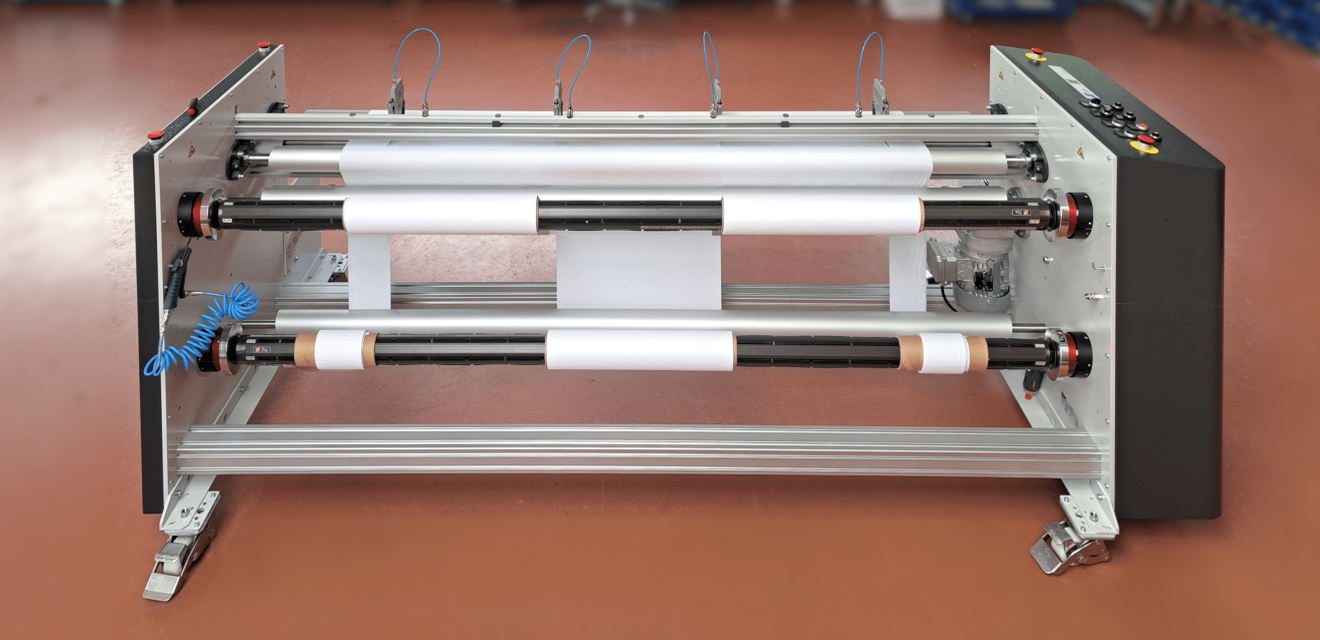

The 1900 is a duplex slitter rewinder with a high-capacity unwind station, built for slitting and rewinding paper, cardboard, and film up to 75" wide. Duplex rewinding puts alternate slit lanes on two separate rewind stations, so adjacent rolls do not rub and each roll comes off with a clean, straight edge. Shear knife slitting handles paper, board, and film, and an electromagnetic brake on the unwind holds tension from a full master roll down to the core. It is built for paper merchants, film converters, and print shops that buy wide master rolls and slit their own production widths.

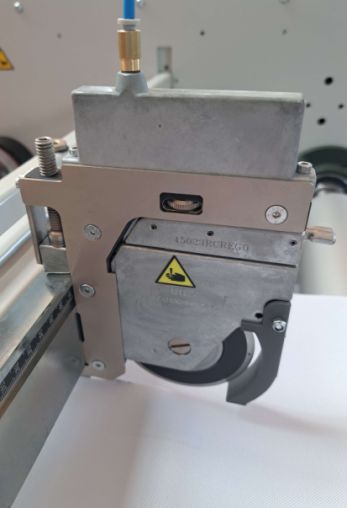

- Slitting: shear knife slitting system, four knife sets included.
- Shafts and chucks: pneumatic expanding shafts for 3" cores, and three sets of quick-lock chucks, one for the unwind and two for the rewind stations.

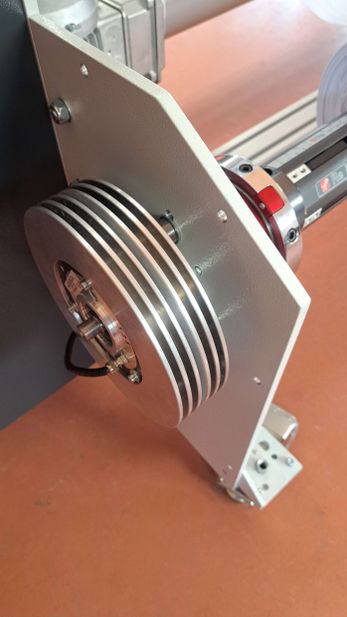

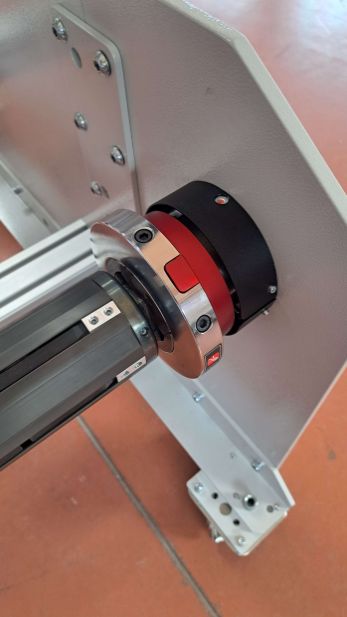

- Tension control: electromagnetic brake on the unwind station, electromagnetic clutches on the rewind stations.
Bookbinding
PH275 HYDRAULIC DUAL-PLATEN BOOKBINDING PRESS

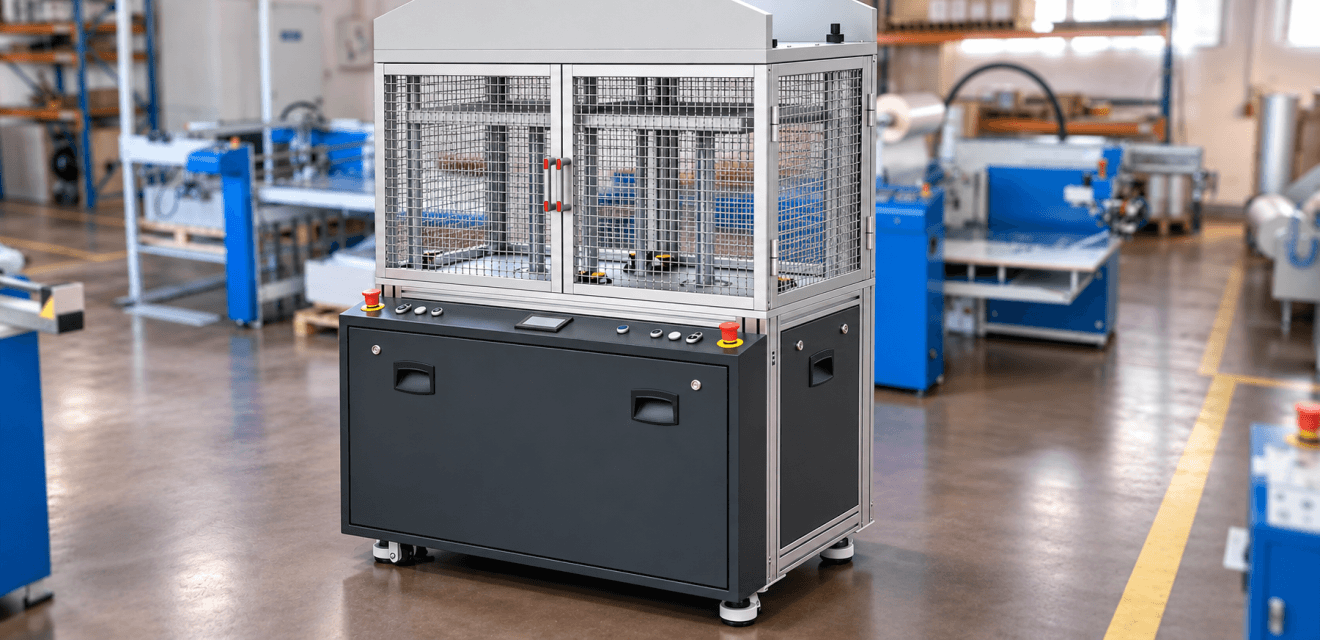

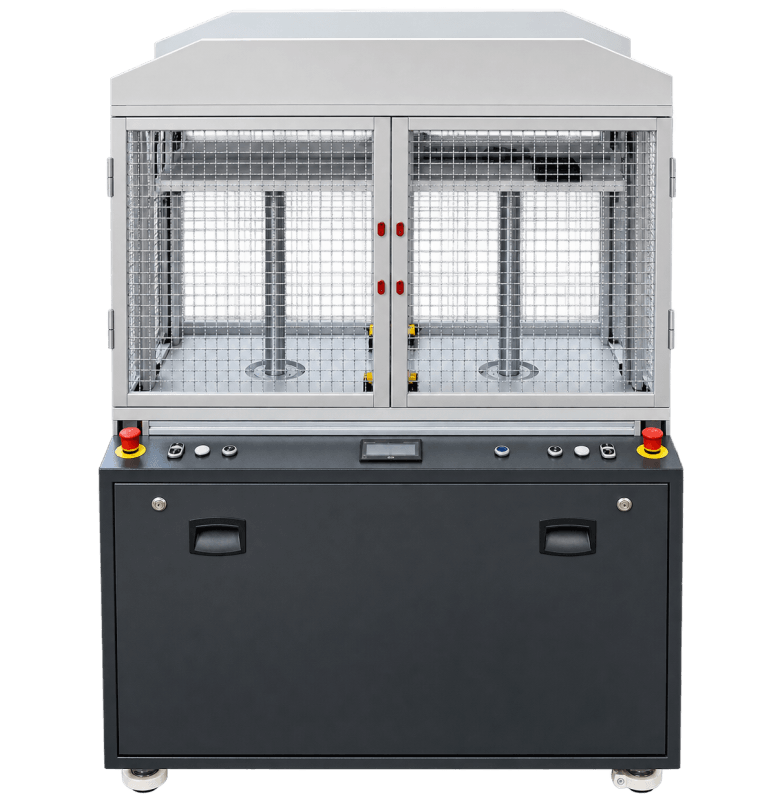

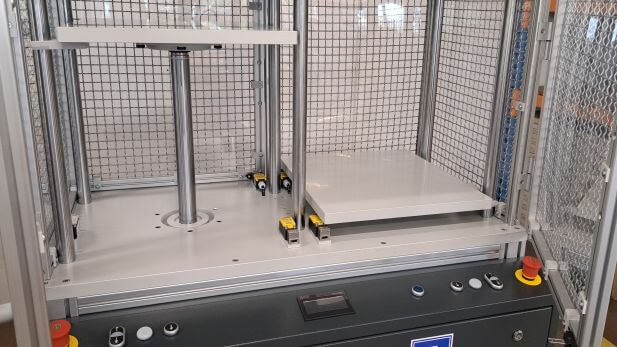

The PH275 is a compact dual-platen hydraulic press for professional bookbinding. Two independent pressing units handle books, book blocks, albums, covers, bookbinding board, and stacks of sheets, and both run from a single operator panel, so you press two jobs at the same time on one machine.
Each unit has its own working platen, raised hydraulically from below. Set the pressing force and pressing time; once the preset force is reached, the hydraulics hold it within ±440 lbf for the programmed cycle. At the end of the cycle the platen stays raised until the operator presses LOWER once. No holding the button down, and no platen movement on its own after the cycle.
- Control: programmable pressing force and pressing time, automatic maintenance of the preset force, platen lowering initiated by the operator with a single press of a button.

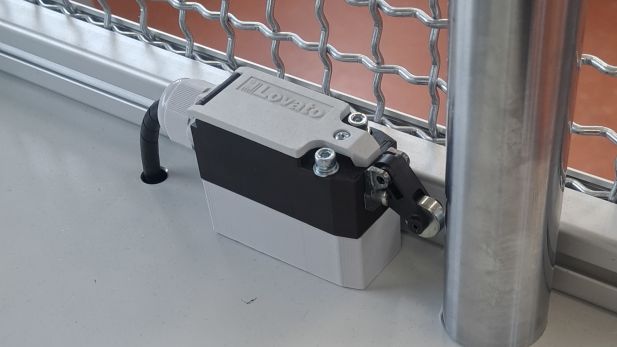

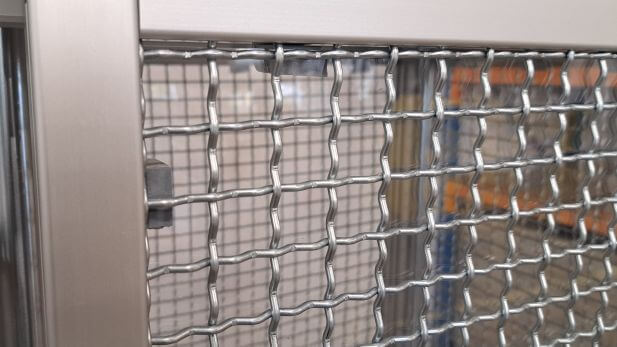

- Safety: safety interlocks on all movable guards, and limit switches monitoring each hydraulic cylinder.
Need a web width, cutting length, or platen size you do not see here? Request a quote and we will go through your roll widths, sheet sizes, and volumes with you.
VIDEOS
Factory demonstrations of each machine running.
CT25 automatic guillotine cutter
Roll-to-sheet cutting to printed marks, servo-driven knife, and sheet delivery.
Automatic mini roll-to-sheet cutter
Compact sheeter cutting narrow web stock to length and to markers.
1900 duplex slitter rewinder
Shear knife slitting from a 75" master roll onto two rewind stations.
PH275 hydraulic dual-platen bookbinding press
Programmed force and time on two independent pressing units.
SPECIFICATIONS
| Machine | Process | Max width | Speed or cycle | Loads | Delivers |
|---|---|---|---|---|---|
| CT25 Automatic guillotine cutter |
Roll-to-sheet cutting, sheet separation after encapsulation | Up to 40" | Per order | Roll, or inline web through the optional buffer | Stacked sheets, anti-static bar |
| Mini Roll-to-Sheet Cutter Compact automatic sheeter |
Roll-to-sheet cutting | Per order (narrow web) | Per order cutting accuracy 0.008" |
Roll | Sheets to a delivery table with air blow |
| 1900 Duplex Slitter rewinder |
Slitting and rewinding, shear knife | 75" | 98 ft/min | Master roll on a high-capacity unwind station, 3" core, electromagnetic brake | Slit rolls on two rewind stations, 3" cores |
| PH275 Bookbinding press |
Hydraulic pressing, two independent units | Platen size per order | Programmed force and time force held within ±440 lbf |
Books, book blocks, albums, covers, board, or sheet stacks, hand loaded on two platens | Pressed job, platen stays raised until the operator lowers it |
"Per order" means ZFP sizes that dimension to your specification rather than publishing a fixed figure. Ask Supply55 for the configuration that matches your web widths and sheet sizes.
ZFP sheeters, slitter rewinders, and bookbinding presses are available through Supply55. Contact us for current lead times, pricing, and a configuration review for your rolls, sheets, and volumes.
Contact Supply55, Inc.
ZFP finishing and converting equipment is available exclusively through Supply55, Inc. in the United States and Canada. Call or email us to discuss your sheeting, slitting, or bookbinding application, request a quotation, or schedule a virtual demonstration.
