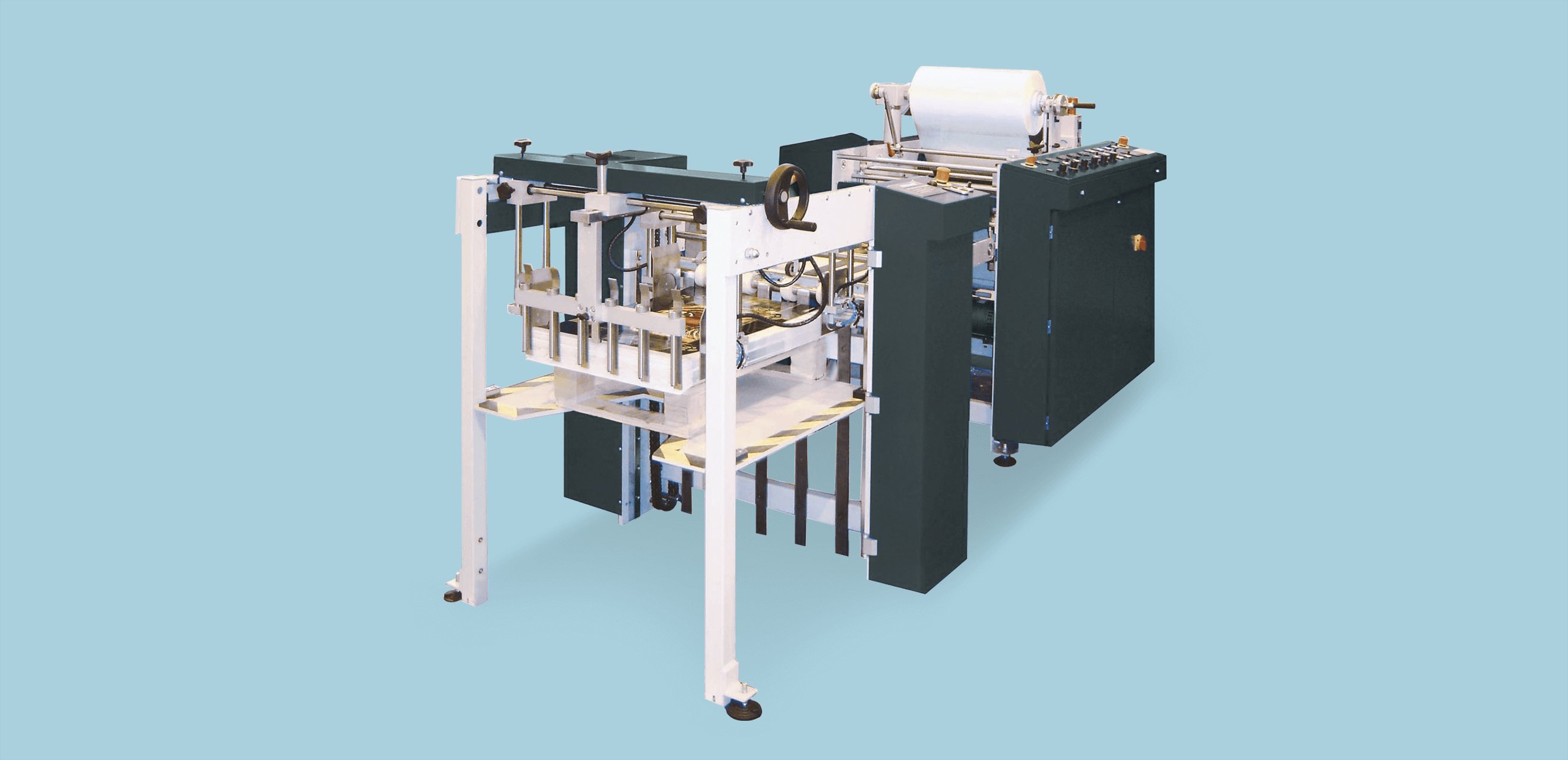

ZFP L210 ST Automatic Sheet-Fed Laminator
HIGH-OUTPUT B2 LAMINATION WITH PALLET FEEDING STANDARD
The ZFP L210 ST is the high-output B2 machine in the ZFP line, a fully automatic laminating line for high-volume digital and offset print shops. It laminates and separates B2 sheets in one continuous process at up to 115 feet per minute, with an oil-filled heating cylinder that holds temperature evenly across the roller face and a pallet feeder with floor-level feed table as standard equipment. ZFP has more than two decades of industrial lamination experience, and every machine is designed, machined, and assembled in-house at its factory in Poland.
The L210 ST laminates digital and offset print with gloss, matte, and soft-touch OPP thermal films on B2 sheets up to 21.3" x 29.1" and stocks from 115 to 600 gsm, with a 90 gsm option for light stock. The standard pallet feeder pairs with an optional automatic stacker for full pallet-to-pallet operation, so long runs load and deliver without hand-stacking lifts. Extended feeder options take sheets over 39 inches long for book covers and case wraps, and an optional foiling rewinder adds digital foiling so the same machine handles foil embellishment.
The L210 ST is sold and supported in the United States and Canada by Supply55, Inc. Machines, wear parts, installation, operator training, and service are all handled by Supply55.
HOW THE L210 ST RUNS
Load the pallet and set the film; the machine feeds, laminates, separates, and stacks.
Lamination and Separation in One Process
Sheets overlap on the cylinder and come off as a continuous laminated stream, and the in-line separator bursts the stream back into single sheets at full production speed. At up to 115 feet per minute, laminated B2 work stacks at the exit ready for cutting, folding, or packing, with no hand separation and no second pass.
- Microprocessor control with an integrated touchscreen holds process parameters stable from the first sheet of a run to the last.
- For OPP, nylon, and polyester films that cannot be burst cleanly, ZFP builds flying-knife separation on the L200 FK.

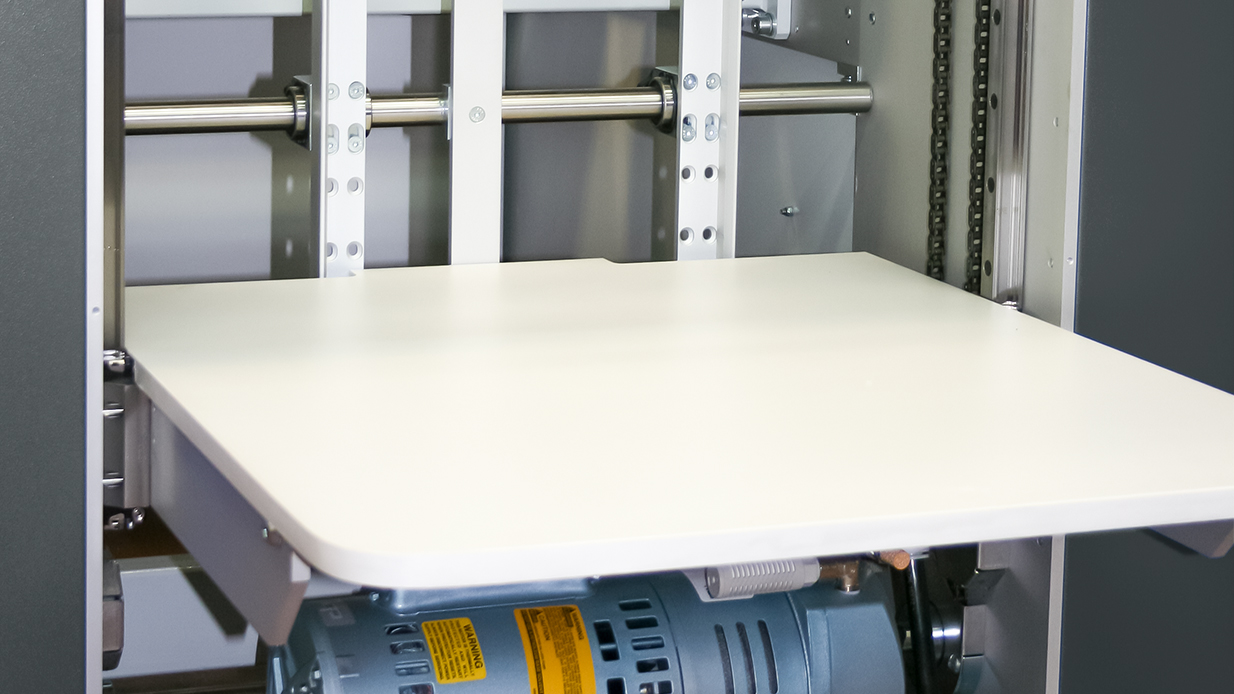

Pallet Feeding Comes Standard
On the L210 ST, pallet feeding is standard equipment, not an option. The feed table sits at floor level, so a loaded pallet goes straight into position without transferring stock by hand, and sheets feed with overlap accuracy within ±0.08". On a machine running 115 feet per minute, keeping the feeder loaded is the job, and the pallet feeder is what makes that pace sustainable through a shift.
- An on-the-run decurl bar flattens sheets after lamination without stopping the machine, even on light stock.
- Add the optional automatic stacker and the line runs pallet to pallet on long jobs.
Oil-Filled Heating for Long Runs
The L210 ST laminates on a chrome-plated steel cylinder with oil-filled heating. The oil carries heat evenly across the full roller face and holds it there, so the temperature the film sees at the edge of a B2 sheet matches the temperature at the center, run after run. Roller pressure adjusts pneumatically from the control panel.
- Operating range is 158 to 284 F, covering gloss, matte, and soft-touch thermal films.
- Temperature stays stable through long runs and back-to-back jobs instead of chasing setpoint.
Digital Foiling and Sleeking
With the optional foiling rewinder, the L210 ST applies digital foil over toner in the same pass architecture it uses for lamination. Print the areas to be foiled, run the sheet with foil instead of film, and metallic covers and cards come off the same machine that laminates them, fed by the same pallet feeder.
Standalone Operation
Touchscreen control with remote diagnostic and software support, and fully standalone operation: no network integration or external data exchange is required to run the machine. Industry 4.0 connectivity is available as an option for shops that want it.
WHAT SHOPS RUN ON THE L210 ST
Book coversHardcover case wrapsBook jacketsPresentation foldersFolding cartonsMenusPostcardsMarketing collateral
Laminated with gloss, matte, soft-touch, and specialty thermal films. With the extended feeder, long-sheet work such as case wraps and dust jackets runs on the same platform.
L210 ST SPECIFICATIONS
| Specification | L210 ST |
|---|---|
| Configuration | Single-sided thermal lamination with burst separation |
| Max sheet size | 21.3" x 29.1", portrait orientation · over 39" long with extended feeder |
| Min sheet size | 8.3" x 8.7" |
| Speed | Up to 115 ft/min maximum laminating speed |
| Stock range | 115 to 600 gsm (90 gsm option) |
| Films | Gloss, matte, and soft-touch OPP thermal films; digital foil with optional rewinder |
| Heating | Chrome-plated steel cylinder, oil-filled heating |
| Nip pressure | Pneumatically controlled rollers |
| Feeding | Pallet feeder standard with floor-level feed table, ±0.08" feed accuracy, on-the-run decurl bar |
| Operating temperature | 158 to 284 °F |
| Power | 8.5 kW, 400V |
| Compressed air | 14.7 CFM at 101 psi |
| Dimensions (L x W x H) | 78.0" x 47.2" x 56.7" |
| Weight | 2,205 lb |
| Film trim | Side knife standard |
OPTIONS FOR THE L210 ST
Extended feeder - Available in three lengths (34.6", 37.4", and 41.3"), taking sheets over 39 inches long for book covers, case wraps, dust jackets, and other long-sheet work.
Jogger or automatic stacker - Squares or stacks finished sheets at the machine exit; the automatic stacker completes pallet-to-pallet operation with the standard pallet feeder.
Foiling rewinder - Adds digital foiling and sleeking, so the machine applies metallic foil over toner as well as laminating film.
Pneumatic expanding film shaft - Speeds up film roll changes and holds the roll true at speed.
DUO option - Adds flying-knife separation alongside the burst separator, so one machine covers both separation methods; which to run depends on the laminating film.
Deionising bar and nozzle - Controls static on digital stock before it reaches the nip.
90 gsm light-stock option - Extends the substrate range below the standard 115 gsm minimum.
Industry 4.0 connectivity - Optional network integration for shops that want it; as standard the machine runs fully standalone with no network or external data exchange required.
ALSO IN THE ZFP LINE
L200 ST
The standard B2 machine: the same single-sided lamination and burst separation at 66 feet per minute, with hand-loaded suction feeding and the pallet feeder as an option.
L200 PB
The photo book machine: two independent laminating stations in one frame, finishing both faces of the sheet to the same photo-grade quality in a single pass, on stocks to 600 gsm.
L100 ST
The B3 machine: the same automatic lamination and burst separation in a smaller format for sheets up to 14.6" x 21.3".
ZFP also builds flying-knife (FK) and embossing (EM) versions of the B2 platform. Not sure which model fits your work? Call 734-668-0755 or request a quote and we will walk through your sheet sizes, stocks, and films with you.
